NDS3542KB Multi-channel Encoder

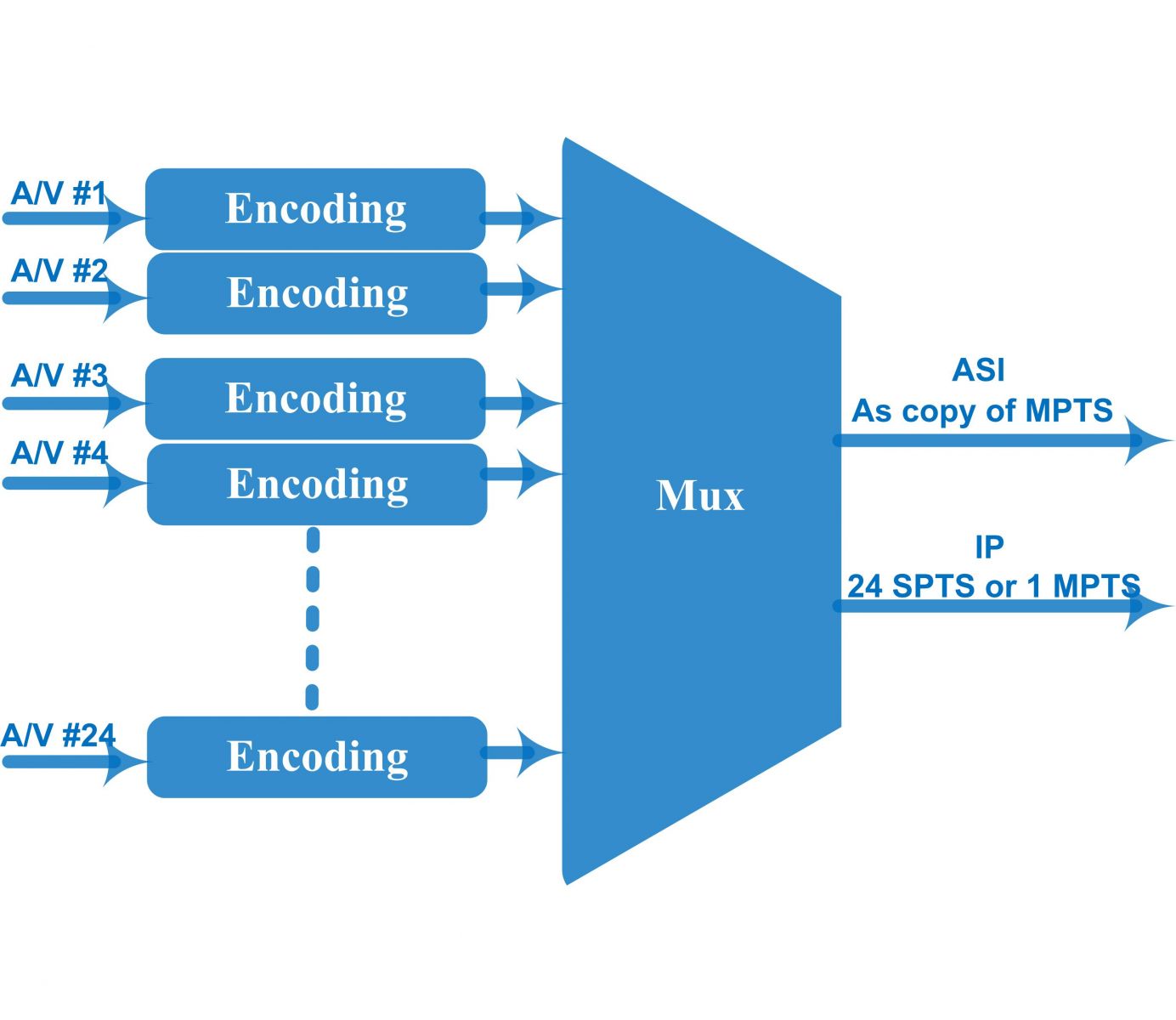

Support MPEG-2, MPEG4/H.264 Video encoding. 8/12×CVBS video inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2. 16/24×CVBS video inputs with 16/24 SPTS or 1 MPTS output (alternative) through Data 1 or Data 2.
Key Specifications

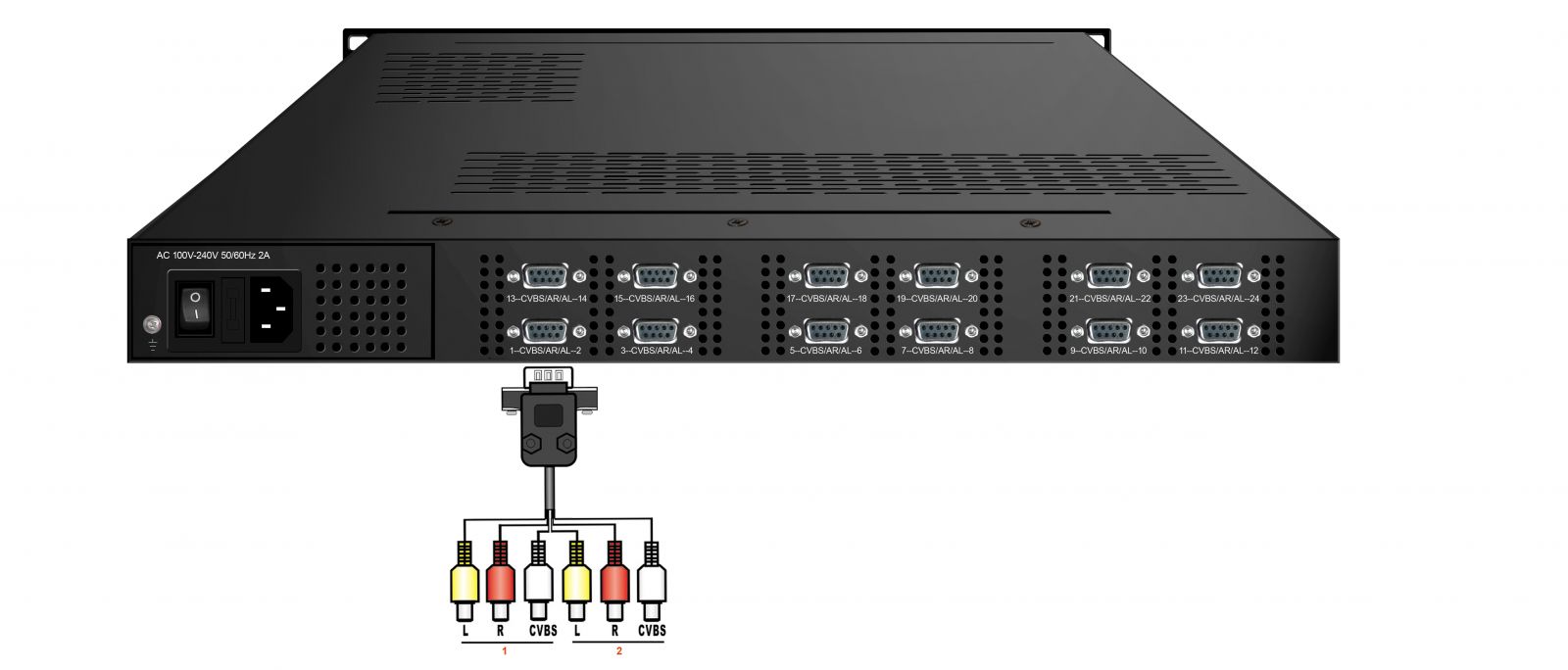

- Input 8/12/16/24 CVBS inputs , RCA interface
- Encoding MPEG-2, MPEG4 AVC/H.264
- Bit-rate 48Kbps~384Kbps (each channel)
- Video Resolution 720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz | 720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz
- GOP Structure IPPP, IBPBP, IBBPB, IBBBP
- Rate Control CBR/VBR
- Bits per sample 32-bit
- Multiplexing Function
Overview
NDS3542KB multi-channel Encoder is a professional audio & video encoder with MPEG2, MPEG4 AVC/H.264 encoding and multiplexing device. It supports to convert 8/12/16/24 CVBS video inputs to IP output. To meet customers’ various requirements, it is also equipped with 1 ASI output for option as required. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc. Key Features: 8/12×CVBS video inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2 Specifications: 16/24×CVBS video inputs with 16/24 SPTS or 1 MPTS output (alternative) through Data 1 or Data 2; Support MPEG-2, MPEG4/H.264 Video encoding; Support IP output over UDP , RTP/RTSP protocol; 8/12/16/24 CVBS inputs , RCA interface; 8/12 CVBS inputs with 8/12 SPTS and 1 MPTS output; 16/24 CVBS inputs with 16/24 SPTS or 1 MPTS output (alternative); Supports PAL and NTSC SD video formats; 1 ASI output (optional) as copy of MPTS
Full Specifications
| Input | 8/12/16/24 CVBS inputs , RCA interface |
| Video Resolution | 720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz | 720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz |
| Encoding | MPEG-2, MPEG4 AVC/H.264 |
| Bit-rate | 0.5~5Mbps |
| Rate Control | CBR/VBR |
| GOP Structure | IPPP, IBPBP, IBBPB, IBBBP |
| Advanced Pretreatment | De-interlacing, noise reduction |
| Bits per sample | 32-bit |
| Bit-rate | 48Kbps~384Kbps (each channel) |
| Multiplexing | Function |
| System function | Network management (WEB) |
| Approx weight | 8kg |
| Environment | 0~45℃(work)；-20~80℃（Storage） |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
| Power consumption | 20W |
