NDS3543D DVB-S2X encoder modulator
HEVC/H.265, MPEG-4 AVC/H.264, MPEG2 SD/HD Encoding Module optional. H.265/H.264 Video Encoding. Support DVB-S/S2/S2X RF output (950-2150MHz) and ASI output.
Key Specifications
- Encoding HEVC/H.265; MPEG-4 AVC/H.264
- Input Digital: HDMI/SDI/AES; Analog: XLR
- Channel AES/SDI: Up to 4 stereosHDMI: 1 stereoXLR: Up to 2 stereos
- Bit rate 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)24 Kbps~128 Kbps (HE-AAC)18 Kbps~56 Kbps (HE-AAC V2)
- encoding MPEG-1 Layer 2, LC, HE, HE V2, AC3 Passthrough
- Audio Gain 0-255
- GOP Structure IBBP, IPPP
- Aspect Ratio 4:3, 16:9
Overview

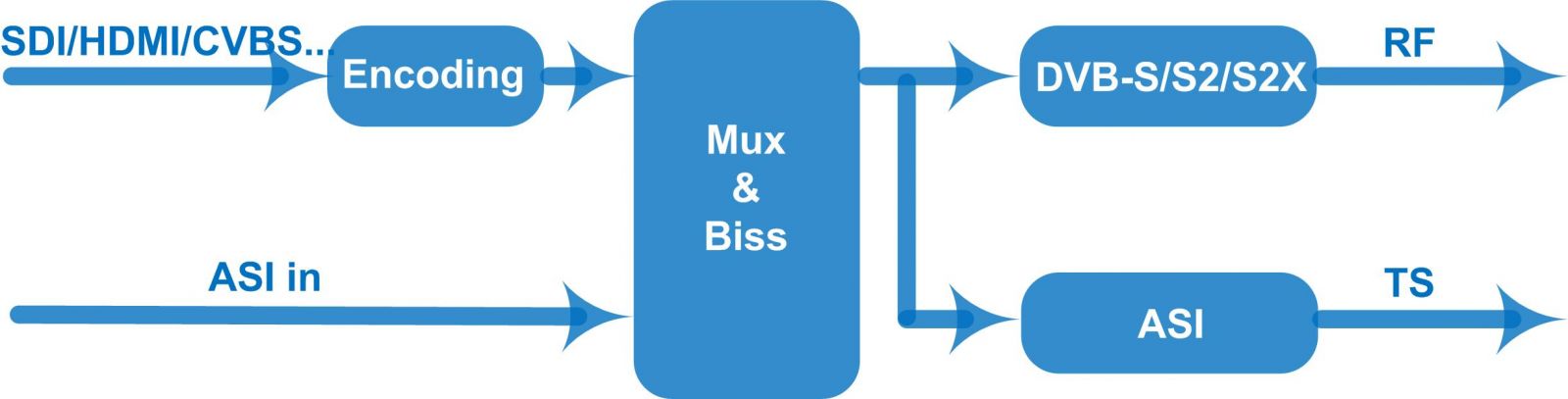

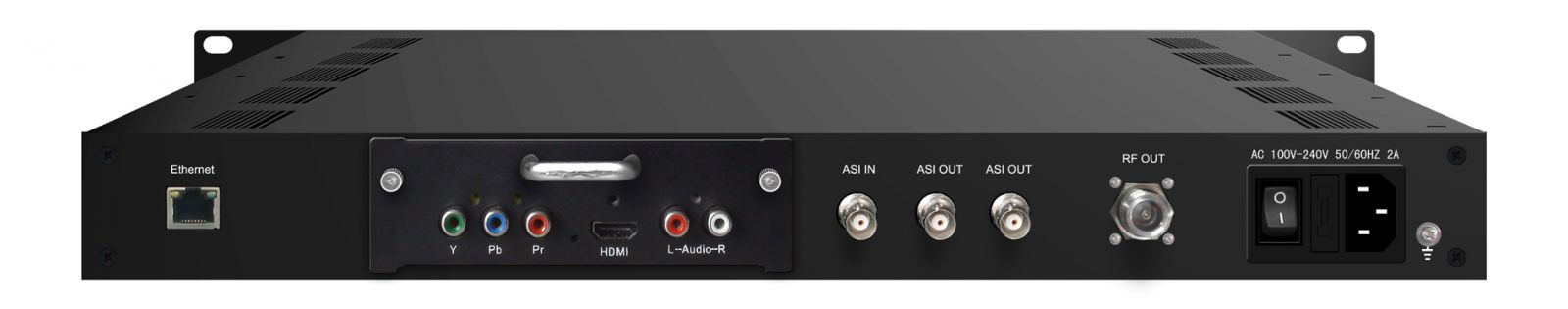

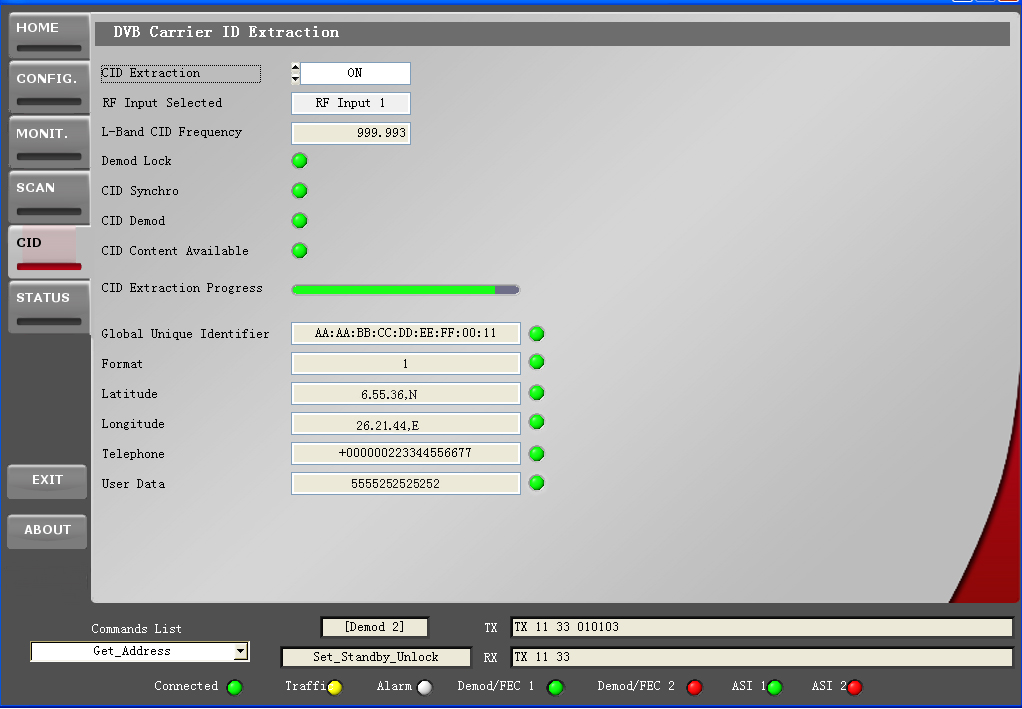

NDS3543D DVB-S/S2/S2X Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (SDI/HDMI/YPbPr/CVBS…) as needed. It is also equipped with 1ASI input for re-mux and modulation. The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, NDS3543D is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink. Key Features: SDI/HDMI/YPbPr/ CVBS…in & 1*ASI in; Multiple channel audio inputs optional; Support DVB-S/S2/S2X RF output (950-2150MHz) and ASI output; QPSK, 8PSK, 8APSK, 16APSK, 32APSK Constellations; Support RF CID setting; Support RF 24V power output; Support Low latency; Support BISS function; Support 10MHz reference clock; Support Web NMS and front panel LCD & Keyboard control; Upgrade device through web NMS Specifications: HEVC/H.265, MPEG-4 AVC/H.264, MPEG2 SD/HD Encoding Module optional; *H.265/H.264 Video Encoding; *Up to 4 stereo audio inputs; HEVC/H.265
Full Specifications
| Encoding | HEVC/H.265; MPEG-4 AVC/H.264 |
| Input | HDMI/SDI/YPbPr |
| 1920×1080_50P,1920×1080_50i | 1920×1080_50P |
| 1280×720_60P,1280×720_59.94P, | 1280×720_60P |
| Bit rate | 4Mbps~20Mbps (for MPEG-4 AVC/H.264)0.5Mbps~20Mbps (HEVC/H.265) |
| Chroma | 4:2:0 |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP, IPPP |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| encoding | MPEG-1 Layer 2, LC, HE, HE V2, AC3 Passthrough |
| Input | Digital: HDMI/SDI/AES; Analog: XLR |
| Channel | AES/SDI: Up to 4 stereosHDMI: 1 stereoXLR: Up to 2 stereos |
| Sample rate | 48KHz |
| Bit rate | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)24 Kbps~128 Kbps (HE-AAC)18 Kbps~56 Kbps (HE-AAC V2) |
| Audio Gain | 0-255 |
| Input | HDMI/SDI/YPbPr/ CVBS(CC only) |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Bit rate | 1-19.5Mbs |
| Aspect Ratio | 4:3, 16:9 |
| Chroma | 4:2:0 |
