NDS3544K Multi-Channel Encoder
12 HDMI inputs with MPEG2 & MPEG4 AVC/H.264 HD/SD Encoding. Support 32 IP input (Data 1 port) over UDP and RTP. Support 1 MPTS and 12 SPTS IP ( DATA 1 and DATA2) output over UDP, RTP/RTSP.
Key Specifications
- Stream output 1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 21 ASI output as mirror of MPTS-Optional
- Video Bit Rate 0.8~19Mbps for H.264 encoding1~19Mbps for MPEG-2 encoding
- Input 12 HDMI inputs12 CC (closed caption) input, BNC interface32 IP input over UDP and RTP through DATA 1 port
- Bit-rate 0.8~19Mbps for H.264 encoding1~19Mbps for MPEG-2 encoding
- Encoding MPEG2 & MPEG4 AVC/H.264
- Video Channel 2/4/6/8/10/12×HDMI optional
- Video Encode MPEG2 & MPEG4 AVC/H.264
- CC Input 12 CC input ports
Overview

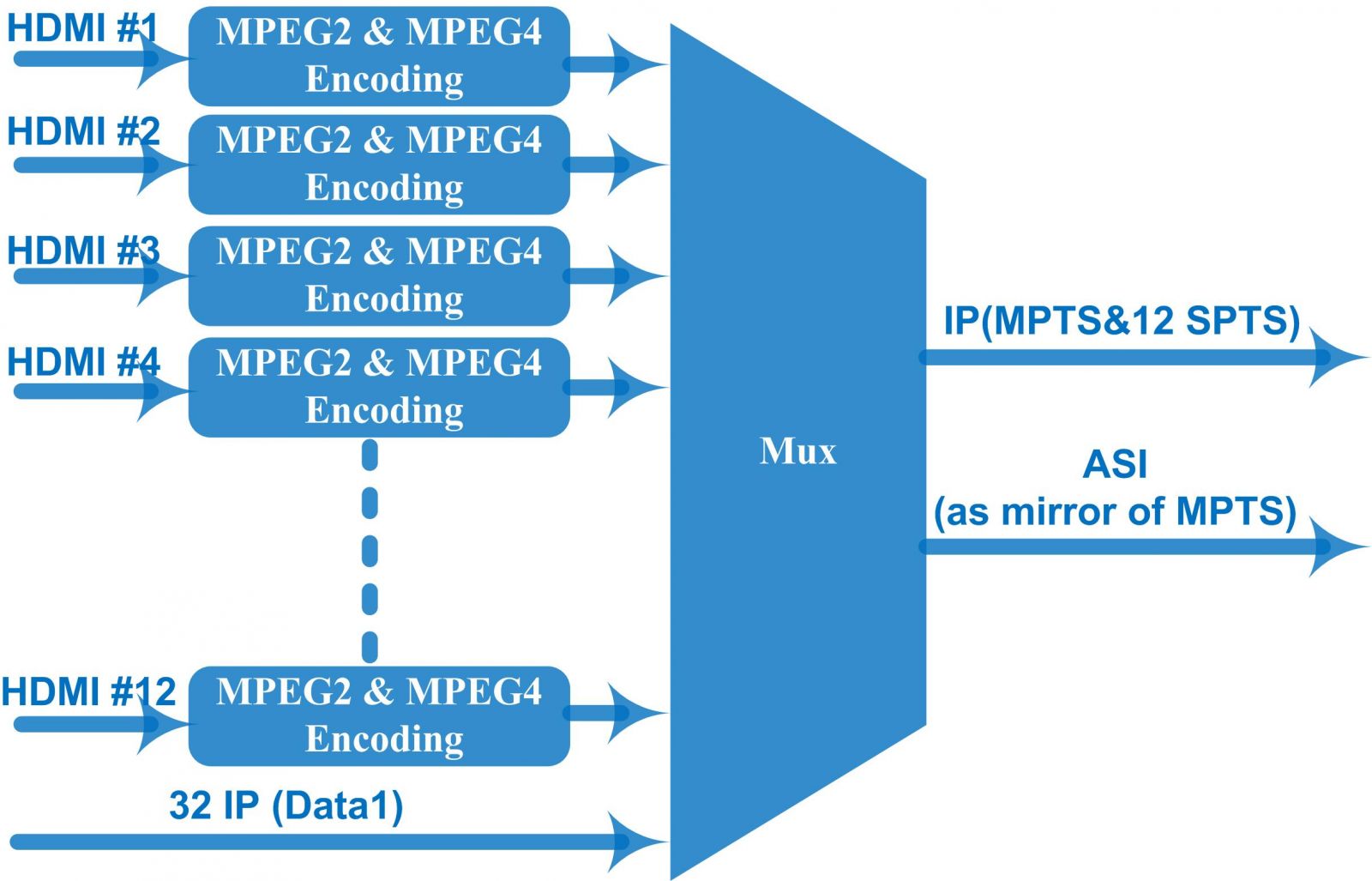

NDS3544K Multi-Channel Encoder is the new broadcasting audio & video encoding and multiplexing device with powerful functionality. It is equipped with 12 HDMI audio & video input interfaces, 12 CC input ports (Closed Caption) and 32 IP input over UDP and RTP through Data1. (Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) Key Features: 12 HDMI inputs with MPEG2 & MPEG4 AVC/H.264 HD/SD Encoding; Support 12 channel CC(Closed Caption) input; Support 32 IP input (Data 1 port) over UDP and RTP; Support 1 MPTS and 12 SPTS IP ( DATA 1 and DATA2) output over UDP, RTP/RTSP; Support ASI output as mirror of MPTS; Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting; Control via web management, and easy updates via web Specifications: 12 CC (closed caption) input, BNC interface; 1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 2; 0.8~19Mbps for H.264 encoding; 1~19Mbps for MPEG-2 encoding; 180 input per channel; 0.8~19Mbps for H.264 encoding; 1~19Mbps for MPEG-2 encoding; 12 HDMI inputs
Full Specifications
| Input | 12 HDMI inputs12 CC (closed caption) input, BNC interface32 IP input over UDP and RTP through DATA 1 port |
| Encoding | MPEG2 & MPEG4 AVC/H.264 |
| Bit-rate | 0.8~19Mbps for H.264 encoding1~19Mbps for MPEG-2 encoding |
| Rate Control | CBR/VBR |
| GOP Structure | GOP B Frame: 0-3, GOP P Frame: 0-6 |
| Advanced Pretreatment | De-interlacing, noise reduction |
| Resolution | 24-bit |
| Bit-rate | 64Kbps-320kbps each channel |
| Multiplexing | Maximum PIDRemapping |
| Function | PID remapping ( automatically or manually) |
| Stream output | 1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 21 ASI output as mirror of MPTS-Optional |
| System function | Network management (WEB) |
| Environment | 0~45℃(work)；-20~80℃（Storage） |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
| Chipset | Vixs |
| Video Channel | 2/4/6/8/10/12×HDMI optional |
| Video Encode | MPEG2 & MPEG4 AVC/H.264 |
| CC Input | 12 CC input ports |
| IP Input | 32 ×IP |
| Video Bit Rate | 0.8~19Mbps for H.264 encoding1~19Mbps for MPEG-2 encoding |
