NDS3544KD Multi-Channel Encoder
12 HD-SDI inputs with MPEG2 & MPEG4 AVC/H.264 HD/SD video Encoding. Support 32 IP input(Data 1 port) over UDP and RTP. Support 1MPTS and 12 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP.
Key Specifications
- Stream output 1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 21 ASI output as mirror of MPTS-Optional
- Bit-rate 0.8~19Mbps for H.264 encoding1~19Mbps for MPEG-2 encoding
- Input 12 HD-SDI inputs with CC (EIA608/EIA708)32 IP input over UDP and RTP through DATA 1 port
- Encoding MPEG2 & MPEG4 AVC/H.264
- Multiplexing Maximum PIDRemapping
- GOP Structure GOP B Frame: 0-3, GOP P Frame: 0-6
- Rate Control CBR/VBR
- Function PID remapping ( automatically or manually)
Overview

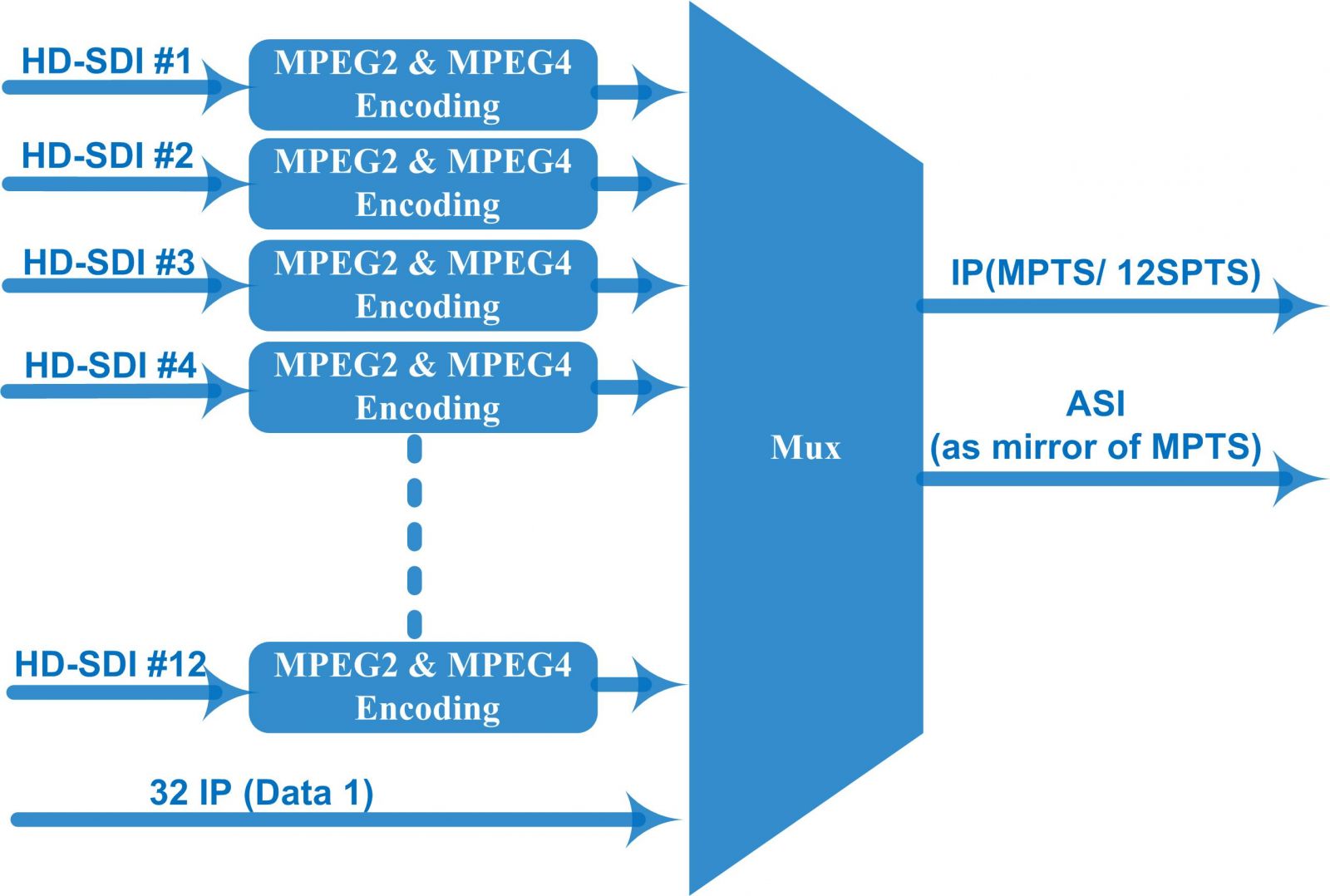

NDS3544KD Multi-Channel Encoder is the new broadcasting audio & video encoding and multiplexing device with powerful functionality. It is equipped with 12 SDI audio & video input interfaces and 32 IP input through Data 1 port. It supports both MPEG-2 and MPEG-4 AVC/H.264 HD/SD video encoding and 1MPTS and 12 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP. Key Features: 12 HD-SDI inputs with MPEG2 & MPEG4 AVC/H.264 HD/SD video Encoding; Support 12 channel CC (close caption) input, EIA608/EIA708; Support 32 IP input(Data 1 port) over UDP and RTP; Support 1MPTS and 12 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP; Support ASI output as mirror of MPTS; Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting; Control via web management, and easy updates via web Specifications: 1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 2; 0.8~19Mbps for H.264 encoding; 1~19Mbps for MPEG-2 encoding; 180 input per channel; 12 HD-SDI inputs with CC (EIA608/EIA708); 32 IP input over UDP and RTP through DATA 1 port; MPEG2 & MPEG4 AVC/H.264; 1 ASI output as mirror of MPTS
Full Specifications
| Input | 12 HD-SDI inputs with CC (EIA608/EIA708)32 IP input over UDP and RTP through DATA 1 port |
| Encoding | MPEG2 & MPEG4 AVC/H.264 |
| Bit-rate | 0.8~19Mbps for H.264 encoding1~19Mbps for MPEG-2 encoding |
| Rate Control | CBR/VBR |
| GOP Structure | GOP B Frame: 0-3, GOP P Frame: 0-6 |
| Bit-rate | 64Kbps-320kbps each channel |
| Multiplexing | Maximum PIDRemapping |
| Function | PID remapping ( automatically or manually) |
| Stream output | 1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 21 ASI output as mirror of MPTS-Optional |
| System function | Network management (WEB) |
| Environment | 0~45℃(work)；-20~80℃（Storage） |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
