NDS3544M Encoder Modulator

Overview

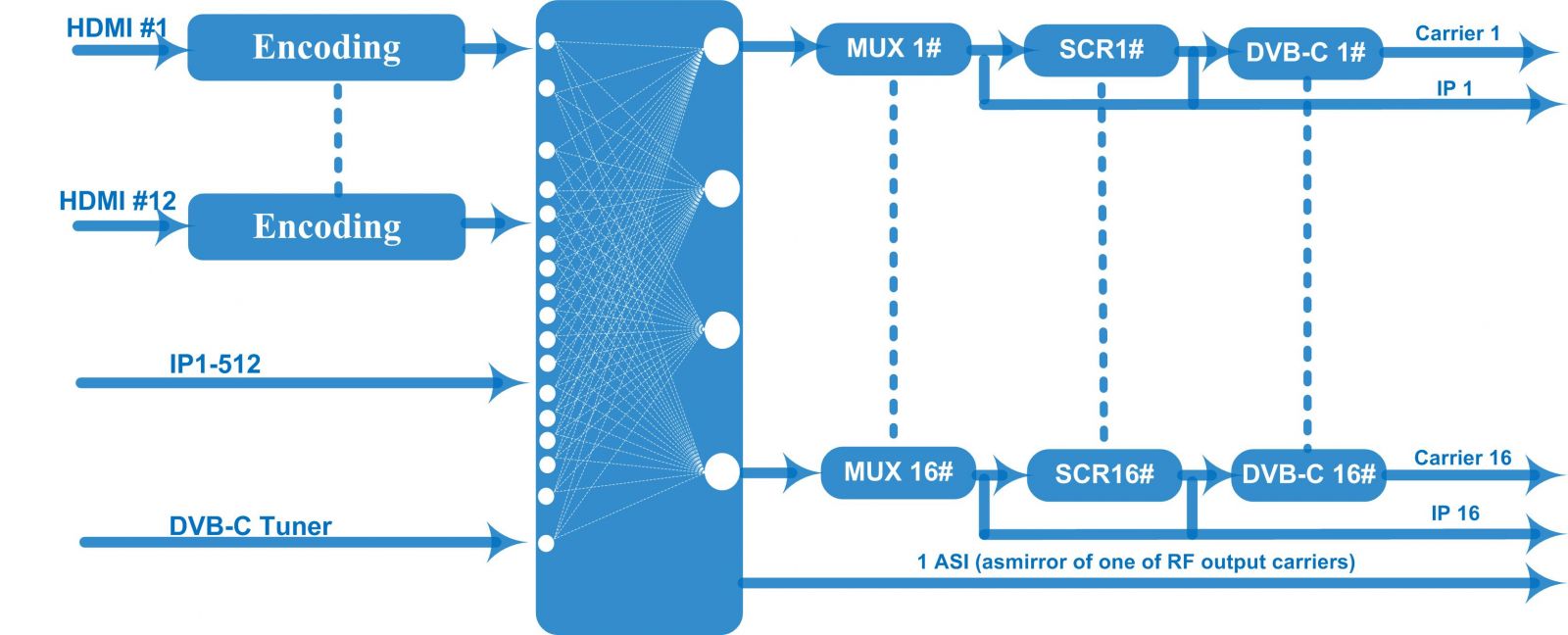

NDS3544M HD encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulating. It supports 12 HDMI and 12 CC inputs, one DVB-C (ATSC optional) tuner input and 256 IP input through Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers or ISDB-T RF out with 6 non-adjacent carriers and supports 16 MPTS as mirror of 16 carriers or 8 MPTS as mirror of 8 carriers or 6 MPTS as mirror of 6 carriers through Data2 (GE) output port. To meet customers’ various requirements, it is also equipped with 1 ASI output as mirror of one of RF output carriers. This full function device makes it ideal for small CATV head end system. Key Features: 12 HDMI inputs with MPEG2 & MPEG4 AVC/H.264 Encoding; 12 CC(Closed Caption) input port; 1DVB-C(ATSC optional) tuner input for re-mux; Each carrier out channel process maximum 32 IP from DATA1 input port (UDP&RTP protocol); Support 16 groups multiplexing/Scrambling/DVB-C modulating; Support 8 groups multiplexing/DVB-T/ATSC modulating---Optional; Support 6 groups multiplexing/ISDB-T modulating---Optional

Full Specifications
