NDS3556HS H.265/H.264 HD Encoder Modulator

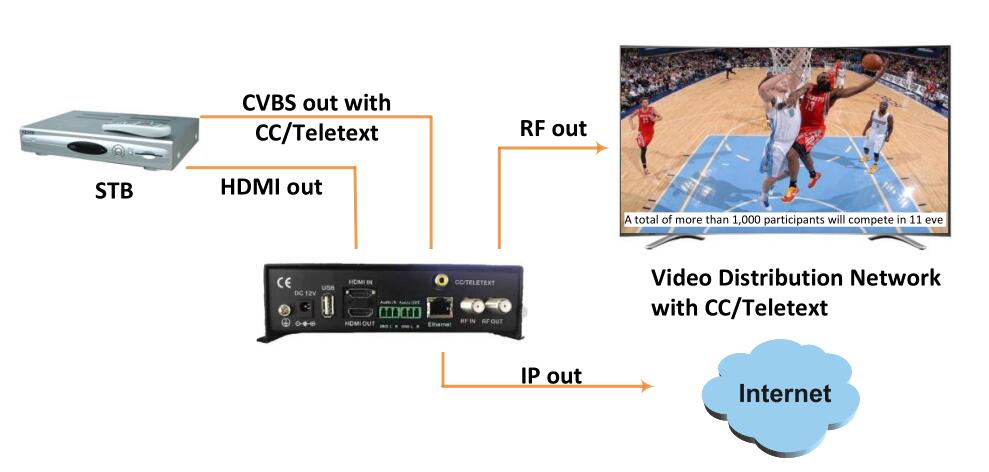

HDMI input with H.265/h.264 video. DVB-C/DVB-T/ISDB-T/ATSC RF OUT for Option. IP output over UDP, RTP/RTSP.
Key Specifications
- Video Encoding
- Interface HDMI*1. HDMI loop out*1
- RF output level -20~-5dBm,1dBstep
- Constellation 16/32/64/128/ 256 QAM
- Audio Samplerate
- Resolution 1920*1080_60P,1920*1080_50P;1920*1080_59.94P,1280*720_60p,1280*720_59.941280*720_50P
- Bitrate 1Mbps~15Mbps
- Bit-rate 48~384Kbps
Overview

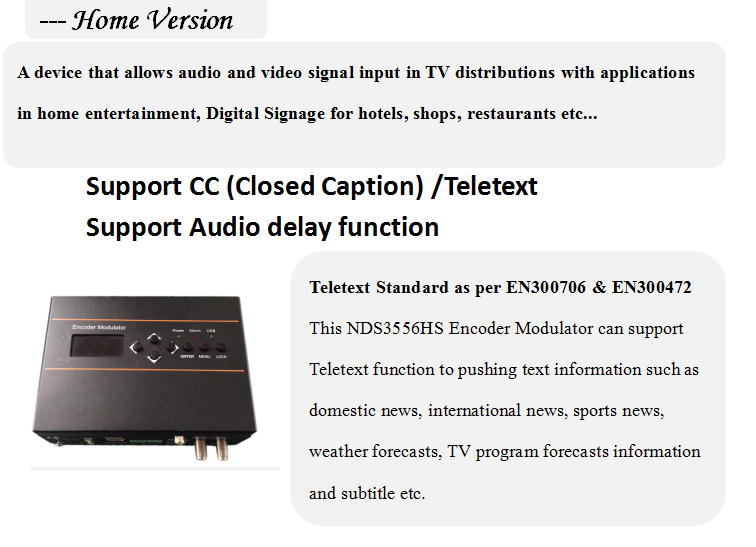

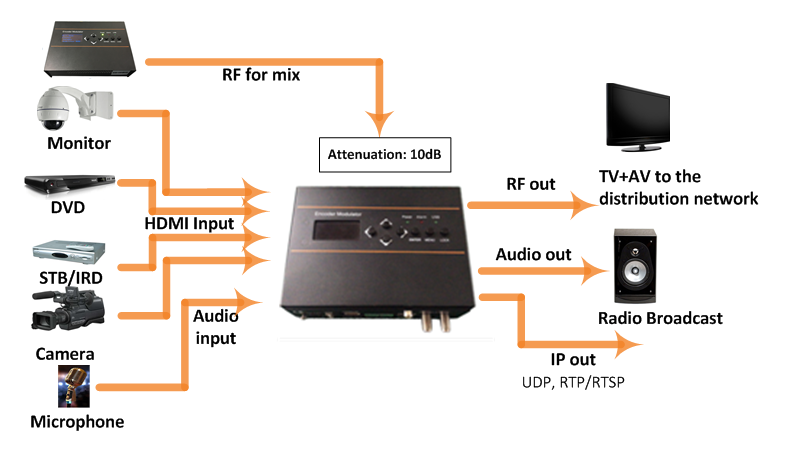

DEXIN NDS3556HS HD encoder & modulator is designed based on consumer electronics which allow HDMI signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, etc. It is an all-in-one device integrating encoding and modulating to convert audio/video signals into DVB-C/DVB-T/ISDB-T/ATSC RF out. Key Features: Support Audio delay functionk; LED Screen for easy management Specifications: *HDMI input with H.265/h.264 video; HEVC/ H.265 , MPEG 4 AVC/H.264; *IP output over UDP, RTP/RTSP; RF output level; RF output level; RF output level; RF output level; RF output level
Full Specifications
| Video | Encoding |
| Interface | HDMI*1. HDMI loop out*1 |
| Resolution | 1920*1080_60P,1920*1080_50P;1920*1080_59.94P,1280*720_60p,1280*720_59.941280*720_50P |
| Chroma | 4:2:0 |
| Bitrate | 1Mbps~15Mbps |
| Rate Control | CBR/VBR |
| Audio | Samplerate |
| Bit-rate | 48~384Kbps |
| Standard | J.83A (DVB-C), J.83B |
| MER | ≥40dB |
| RF frequency | 100-1000MHz, 1KHz step |
| RF output level | -20~-5dBm,1dBstep |
| Symbol rate | 5.000~7.000Msps adjustable |
| Constellation | 16/32/64/128/ 256 QAM |
| Standard | DVB-T COFDM |
| Bandwidth | 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Transmission Mode: | 2K,8K |
