NDS3559D Analog/Digital TV Channel Convertor
Support up to 6 channel input and output. Output shoulder leve: ≥57dB (for single channel), ≥54dB (for 6 channels). RF range: 470-860MHz, 80M bandwidth for start-end channel.
Key Specifications
- RF range 48~960MHz, 1KHz step, 110M bandwidth for start-end channel
- Standard 6M/8M channel bandwidth, DVB-C/T, ATSC, ISDB-T, PAL, NTSC, etc
- Input 1*RF IN with up to 6 frequencies
- Output 1*RF OUT with up to 6 frequencies - N Type, 50Ω1* RF TEST - F Type

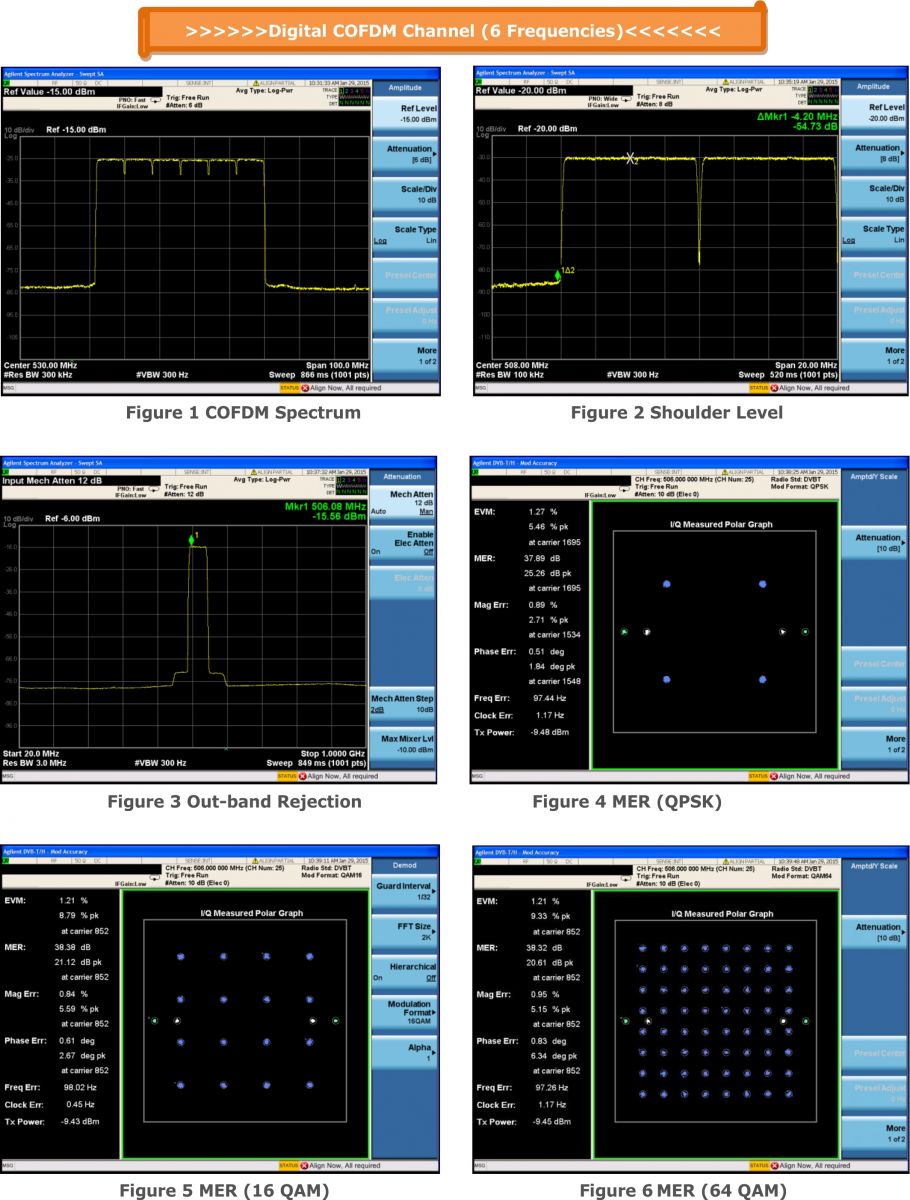

- Shoulder level ≥57dB (for single channel), ≥54dB (for 6 channels)
- Power Supply AC 220V±10%,50/60Hz
- RF ATT -25~-2 dBm, 0.5dBm step
- Image rejection >70dB
Overview

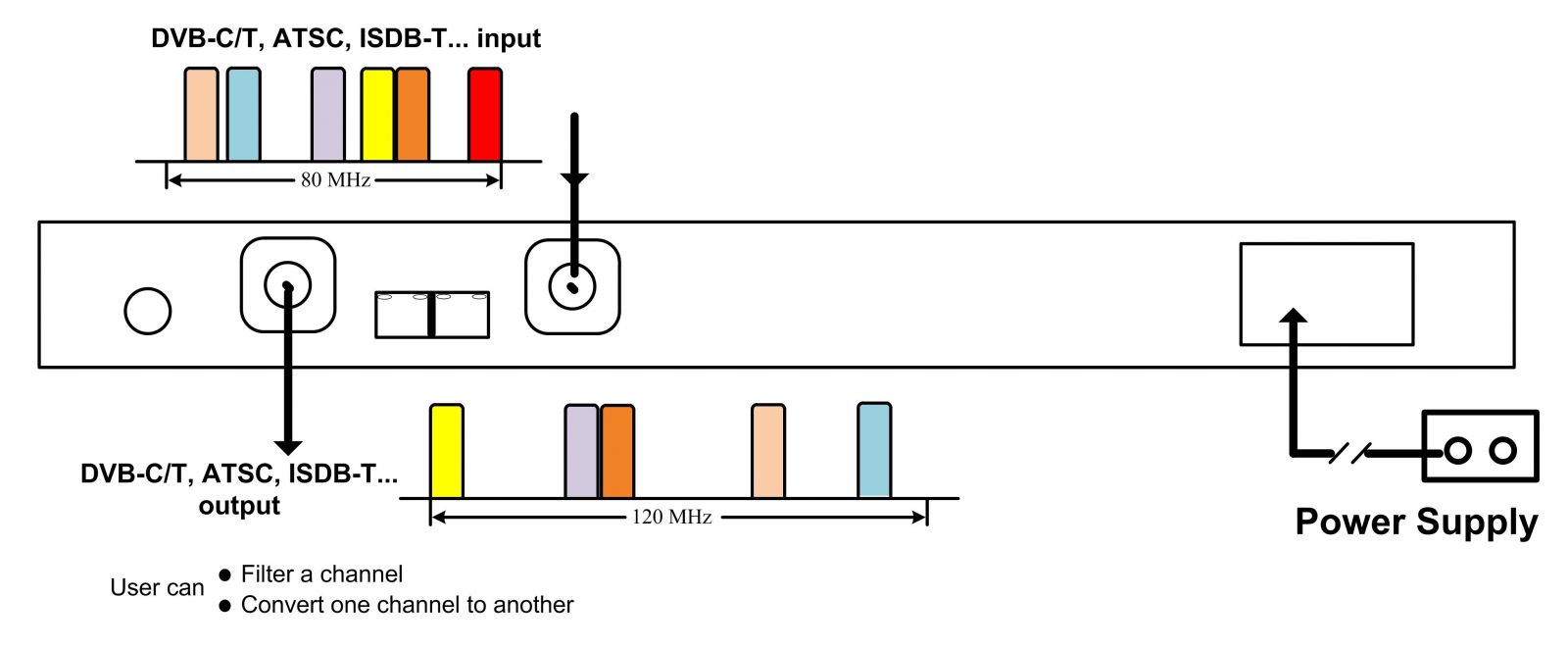

DEXIN NDS3559D analog/digital TV channel processor supports to convert or process 6 channels of frequencies. It makes it possible to efficiently utilize the limited spectrum resources and provide stable signals for fixed and mobile terminals. This TV channel processor is widely used analog and digital DVB-C/T, ATSC, ISDB-T, etc channel conversion, and support 8M or 6M channel bandwidth. For easy operation and management, NDS3559D is designed to remote network upgrade and control. Key Features: Applicable to analog and digital signal conversion; Support up to 6 channel input and output; Output shoulder leve: ≥57dB (for single channel), ≥54dB (for 6 channels); output level: -25~-2 dBm, 0.5 dbm step; Support WEB management and system upgrade; Applicable to analog and digital signal conversion; Support up to 6 channel input and output; Output shoulder leve: ≥57dB (for single channel), ≥54dB (for 6 channels); output level: -25~-2 dBm, 0.5 dbm step; Support WEB management and system upgrade Specifications: RF range: 470-860MHz, 80M bandwidth for start-end channel; 48~960MHz, 1KHz step, 110M bandwidth for start-end channel
Full Specifications
| Input | 1*RF IN with up to 6 frequencies |
| Output | 1*RF OUT with up to 6 frequencies - N Type, 50Ω1* RF TEST - F Type |
| RF range | 48~960MHz, 1KHz step, 110M bandwidth for start-end channel |
| RF ATT | -25~-2 dBm, 0.5dBm step |
| Shoulder level | ≥57dB (for single channel), ≥54dB (for 6 channels) |
| Image rejection | >70dB |

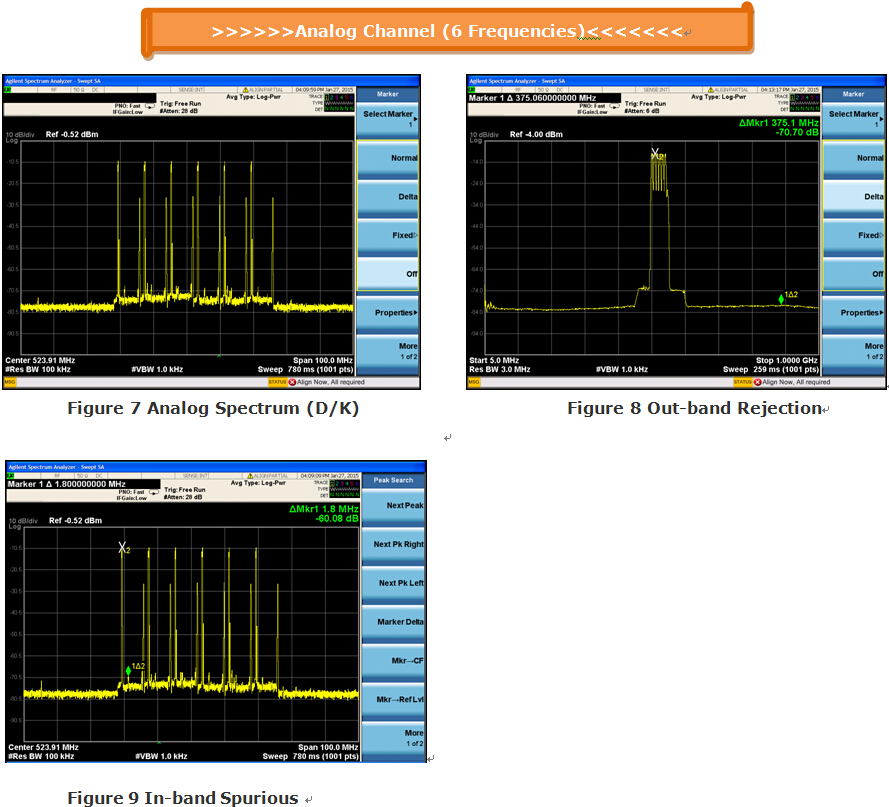

| Spurious in band | <-55dBc |
| Standard | 6M/8M channel bandwidth, DVB-C/T, ATSC, ISDB-T, PAL, NTSC, etc |
| System | WEB-server manage |
| General | Dimensions (W*L*H) |
| Weight | 4 kg |
| Temperature | 0~45℃(Running), -20~80℃(Storage) |
| Power Supply | AC 220V±10%,50/60Hz |
| Consumption | 27W |
