NDS3585 V2 Multi-Channel CI-Receiver
2 or 4 Tuner (DVB-C/T/(T)/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each demodulation module. 2 or 4* tuner inputs (DVB-C/T/(T)/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional), F type. 2*DVB-S/S2/S2X…
Key Specifications
- Input(per demodulation module) 2 or 4* tuner inputs (DVB-C/T/(T)/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional), F type1*ASI input for re-mux, BNC interface16*IP input for re-mux (UDP/RTP)1 TS playing via USB Disk
- Max input bitrate ≤170 Mbps
- Constellation QPSK, 8PSK, 8APSK, 16APSK, 32APSK
- Bandwidth 6/7/8 M
- Symbol rate QPSK/8PSK /16APSK :0.5~45 Msps8APSK: 0.5~40Msps32APSK: 0.5~40Msps
- Signal Strength - 65- -25dBm
- FEC 1/2, 2/3, 3/4, 5/6, 7/8
- Descrambling CAM/CI Quantity
Overview

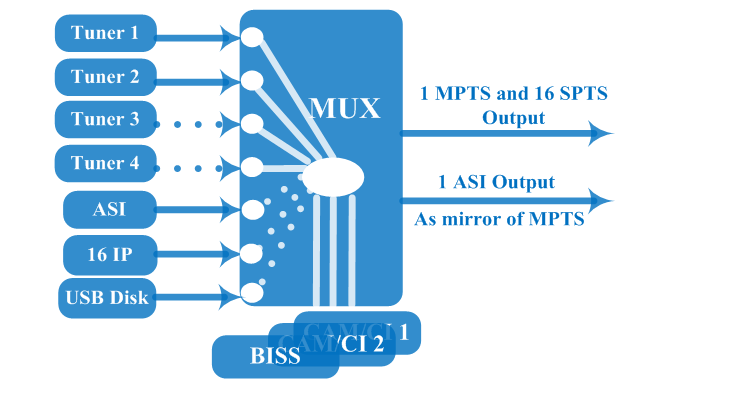

NDS3585 V2 Multi-Channel CI-Receiver is a DEXIN’s new design which integrates demodulation and de-scrambler in one case to convert RF signals into TS output after re-mux. It is a 1-U case which supports Max 2 demodulation modules. The 2 CAMs/CIs accompanied in each demodulation module can decrypt programs inputting from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. Key Features: 2 or 4 Tuner (DVB-C/T/(T)/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each; demodulation module; 1 ASI & 16 IP (UDP/RTP) inputs for re-mux; TS playing via USB disk for each demodulation module; EIT remultiplexing (Optional); One CAM can decrypt multiple programs from Tuners/ASI/IP; Support BISS descrambling; IP (1 MPTS & 16 SPTS) over UDP and RTP output; ASI out for MPTS; Support maximum 256 PID mapping; Remote control and Firmware, web NMS management; Updates via web Specifications: 2 or 4 Tuner (DVB-C/T/(T)/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each demodulation module; 1*ASI input for re-mux, BNC interface; Tuner Input(per demodulation module); Max input bitrate
Full Specifications
| Input(per demodulation module) | 2 or 4* tuner inputs (DVB-C/T/(T)/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional), F type1*ASI input for re-mux, BNC interface16*IP input for re-mux (UDP/RTP)1 TS playing via USB Disk |
| Standard | J.83A, J.83C |
| Constellation | 16/32/64/128/256 QAM |
| Bandwidth | 6/7/8 M |
| Satellite | DVB-S |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤170 Mbps |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps32APSK: 0.5~40Msps; |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Max input bitrate | ≤170 Mbps |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps8APSK: 0.5~40Msps32APSK: 0.5~40Msps |
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| Max input bitrate | ≤170 Mbps |
| Bandwidth | 6 M |
| Constellation | 8 VSB |
| Descrambling | CAM/CI Quantity |
| BISS Mode | Mode 1, Mode E |
