NDS3714A IP to HDMI Decoder
MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS and AVS+ video decoding. MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+. 8 IP (MPTS/SPTS) input over UDP&RTP through data port.
Key Specifications
- Input 8 IP (100M/1000Mbps Ethernet, RJ45, UDP&RTP protocol, Unicast/multicast)
- Interface 4* HDMI
- Video Resolution 480i, 480p, 576i, 576p,1280×720_50p, 1280×720_60p, 1920×1080_50i, 1920×1080_50p 1920×1080_60i, 1920×1080_60p
- Audio Channel One stereo audio embedded in each port
- Max bitrate ≤900Mbps
- Decode Video Format
- Power Supply 220VAC±10%，50Hz
- Language Chinese/English
Overview

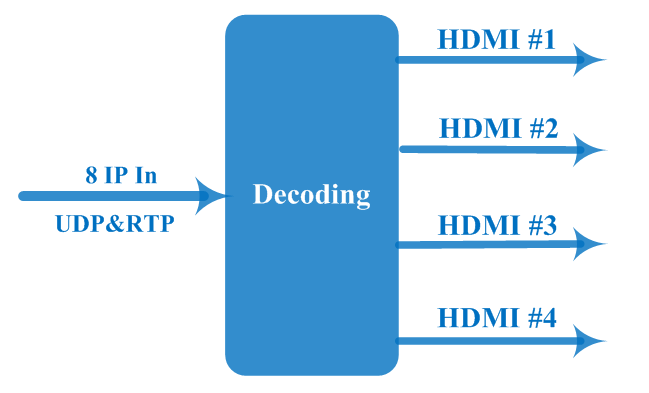

decoder designed by DEXIN. It supports 8 IP inputs, after MPEG-2/H.264/H.265 video decoding, it outputs 4 channels of HDMI videos with one stereo audio embedded in each port. It supports up to 1080i and 1080p out and supports manually upscale and downscale resolution. So it provides various solutions for operators to distribute programs. Key Features: 8 IP (MPTS/SPTS) input over UDP&RTP through data port; 4 HDMI decoding out with 1 channel stereo audio embedded in each port; Manually upscale/downscale resolution; Control via web management Specifications: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS and AVS+ video decoding; MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+; 8 IP (100M/1000Mbps Ethernet, RJ45, UDP&RTP protocol, Unicast/multicast); One stereo audio embedded in each port
Full Specifications
| Input | 8 IP (100M/1000Mbps Ethernet, RJ45, UDP&RTP protocol, Unicast/multicast) |
| Max bitrate | ≤900Mbps |
| Decode | Video Format |
| Interface | 4* HDMI |
| Video Resolution | 480i, 480p, 576i, 576p,1280×720_50p, 1280×720_60p, 1920×1080_50i, 1920×1080_50p 1920×1080_60i, 1920×1080_60p |
| Audio Channel | One stereo audio embedded in each port |
| Language | Chinese/English |
| Dimension | 328 mm×482 mm×45mm (LxWxH) |
| Environment | 0~45℃(Work)；-20~80℃(Storage) |
| Power Supply | 220VAC±10%，50Hz |
| Consumption | <25W |
