NDS3922A Audio Decoder
1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order). 2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports. 2 ASI inputs, BNC interface.
Key Specifications
- Input 1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order)2 ASI inputs, BNC interface2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports
- Decoding Audio Format
- Constellation QPSK, 8PSK, 8APSK, 16APSK, 32APSK
- Bandwidth 5/ 6/7/8 M
- Symbol rate QPSK/8PSK/16APSK:0.5~45Msps8APSK/32APSK: 0.5~40Msps
- Signal Strength - 65- -25dBm
- FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10
- Standard DVB-C/J.83A, J.83C
Overview

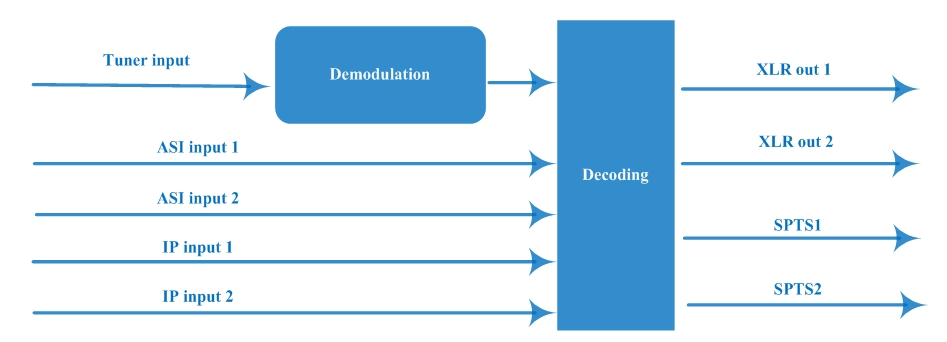

Key Features: Dual power supply(hot-plugging) and Single power supply are optional Specifications: 2 ASI inputs, BNC interface; 2 analog balanced audio out (XLR interfaces); 2 AES/EBU digital audio out (XLR interfaces); 2 SPTS output over UDP/RTP, unicast / multicast (for 2 decoded audio programs respectively),; 1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order); 2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports; 2*100/1000M self-adaptive rj45 interfaces; MPEG1 Layer2, DRA and more
Full Specifications
| Input | 1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order)2 ASI inputs, BNC interface2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports |
| Standard | DVB-C/J.83A, J.83C |
| Constellation | 16/32/64/128/256 QAM |
| Symbol rate | 1.0~7.0Msps |
| Constellation | QPSK, 16QAM, 64QAM |
| Bandwidth | 6/7/8 M |
| Constellation | QPSK, 16QAM, 64QAM, 256QAM |
| Bandwidth | 5/ 6/7/8 M |
| Constellation | DQPSK, QPSK, 16QAM, 64QAM |
| Satellite | DVB-S |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Symbol rate | QPSK/8PSK/16APSK:0.5~45Msps32APSK: 0.5~40Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Symbol rate | QPSK/8PSK/16APSK:0.5~45Msps8APSK/32APSK: 0.5~40Msps |
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| Decoding | Audio Format |
