NDS3975C HD IRD
Support HD/SD MPEG2, MPEG4 AVC/H.264, HEVC/H.265 and AVS/AVS+ decoding. Decode: MPEG-2, MPEG4 AVC/H.264, HEVC/H.265 and AVS/AVS+. 1 or 2 Tuner inputs (DVB-C/T/S/S2/S2X/ATSC-T/ISDB-T optional) for option.
Key Specifications
- Input 1 or 2 *Tuner for option, F type, (DVB-C/T/S/S2/S2X/ATSC-T/ISDB-T optional as per order)2*ASI input for re-mux, BNC interface16*IP input for re-mux (UDP/RTP), RJ45
- Constellation QPSK, 8PSK, 8APSK, 16APSK, 32APSK
- Bandwidth 6/7/8 M
- Symbol rate QPSK/8PSK/16APSK: 0.5~45Msps8APSK/32APSK: 0.5~40Msps
- Signal Strength - 65- -25dBm
- FEC QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
- Descrambling CAM/CI Qty
- Standard DVB-C/J.83A, J.83C
Overview

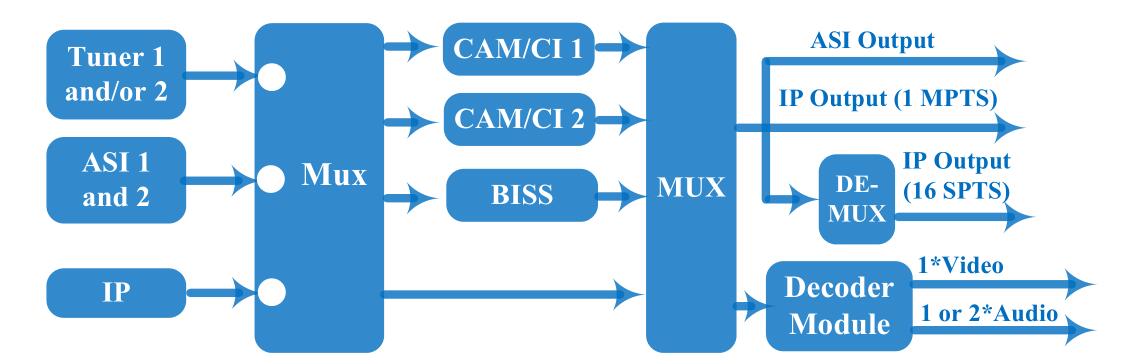

NDS3975C HD IRD is DEXIN’s new product which can receive signals from tuners (DVB-C, DVB-T, DVB-S/S2/S2X, ATSC-T, ISDBT optional), ASI and IP. After demodulating, de-scrambling, re-multiplexing and decoding, it gives content out through various video/audio interfaces (HDMI, CVBS, 3G-SDI) or ASI or IP.This IRD is featured with two CAM/CI slots and BISS which supports to descramble encrypted Tuner, ASI or IP signals. Key Features: Demodulator + descrambler +re-mux+ decoder in one box; 1 or 2 Tuner inputs (DVB-C/T/S/S2/S2X/ATSC-T/ISDB-T optional) for option; 2 ASI & 16 IP UDP/RTP input for re-mux; Support 1ch HDMI/CVBS/3G-SDI video out (SDI1 and SDI2 mirrored out); Support 1ch or 2ch Audios out for option; Support HD/SD MPEG2, MPEG4 AVC/H.264, HEVC/H.265 and AVS/AVS+ decoding; IP (1 *MPTS & 16* SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored out as a copy of the IP MTPS; Each CAM can decrypt multiple programs from Tuner/ASI/IP; BISS descrambling (Up to 120Mbps); Support CC (EIA608, EIA708) & Teletext (Applicable for SDI port); Support maximum 128 PID mapping per input; LCD/Keyboard and web-based NMS management Specifications: 2*ASI input for re-mux, BNC interface
Full Specifications
| Input | 1 or 2 *Tuner for option, F type, (DVB-C/T/S/S2/S2X/ATSC-T/ISDB-T optional as per order)2*ASI input for re-mux, BNC interface16*IP input for re-mux (UDP/RTP), RJ45 |
| Standard | DVB-C/J.83A, J.83C |
| Constellation | 16/32/64/128/256 QAM |
| Symbol rate | 1.0~7.0Msps |
| Constellation | QPSK, 16QAM, 64QAM |
| Bandwidth | 6/7/8 M |
| Constellation | DQPSK, QPSK, 16QAM, 64QAM |
| Satellite | DVB-S |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Symbol rate | QPSK/8PSK/16APSK: 0.5~45Msps32APSK: 0.5~40Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Symbol rate | QPSK/8PSK/16APSK: 0.5~45Msps8APSK/32APSK: 0.5~40Msps |
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| Constellation | 8VSB |
| Descrambling | CAM/CI Qty |
| BISS Mode | Mode 1, Mode E (up to 120Mbps) |
