NEP10 IP Gateway

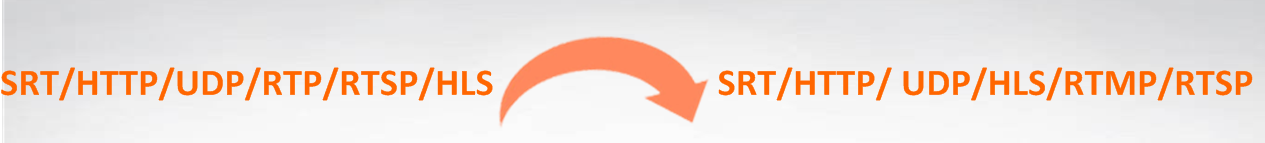

IP input through Ethernet1/ Ethernet2 over SRT, HTTP, UDP, RTP/RTSP and HLS.. IP output through Ethernet1 over SRT, HTTP, UDP, HLS, RTMP and RTP/RTSP.. IP Protocol Conversion.
Key Specifications
- IP output IP output through Ethernet1 over SRT, HTTP, UDP, HLS, RTMP and RTP/RTSP.
- Protocol conversion Bit-Rate
- IP Input IP input through Ethernet1/ Ethernet2 over SRT, HTTP, UDP, RTP/RTSP and HLS.
- System Support about 8-12 HD/SD programs (Bitrate:8Mbps) conversion
- Power Supply AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
- General Demission
- UDP to SRT/HTTP/RTP/RTSP/HLS/RTMP 3Mbps
- UDP to SRT 8Mbps
Overview

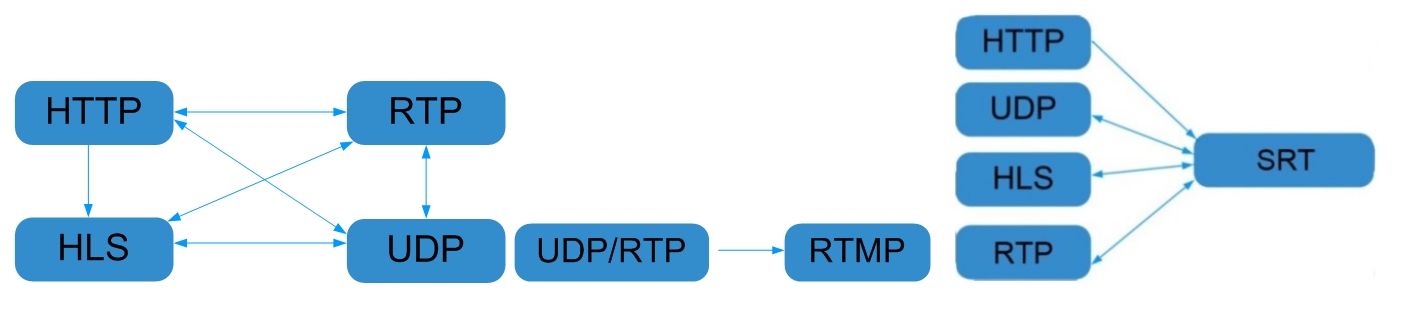

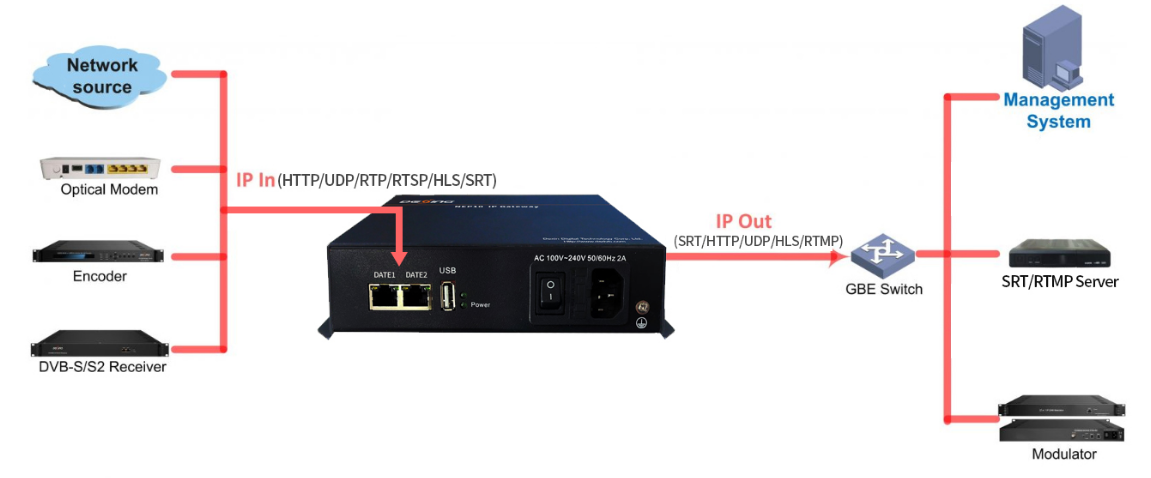

Dexin NEP10 IP Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over SRT, HTTP, UDP, RTP, RTSP and HLS protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly. Key Features: Ethernet1 for input and output (Recommend).; Ethernet2 for input. Ethernet2 is only suitable for the simple network with low bit-rate.; Ethernet port: IP in over SRT, HTTP, UDP, RTP/RTSP and HLS; IP out over SRT, HTTP, UDP, RTP/RTSP,HLS and RTMP.; Support IP anti-jitter function; Support about 8-12 HD/SD programs (Bitrate:8Mbps) conversion.; Control via web-based NMS management through Ethernet port; IP Protocol Conversion; Ethernet1 for input and output (Recommend).; Ethernet2 for input. Ethernet2 is only suitable for the simple network with low bit-rate.; Ethernet port: IP in over SRT, HTTP, UDP, RTP/RTSP and HLS; Support IP anti-jitter function Specifications: IP Protocol Conversion; IP input through Ethernet1/ Ethernet2 over SRT, HTTP, UDP, RTP/RTSP and HLS.
Full Specifications
| IP Input | IP input through Ethernet1/ Ethernet2 over SRT, HTTP, UDP, RTP/RTSP and HLS. |
| IP output | IP output through Ethernet1 over SRT, HTTP, UDP, HLS, RTMP and RTP/RTSP. |
| System | Support about 8-12 HD/SD programs (Bitrate:8Mbps) conversion |
| General | Demission |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
| Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| Protocol conversion | Bit-Rate |
| UDP to SRT/HTTP/RTP/RTSP/HLS/RTMP | 3Mbps |
| UDP to SRT | 8Mbps |
| Protocol conversion | Bit-Rate |
| SRT to UDP/RTP/RTSP/HLS | 3Mbps |
| SRT to UDP | 8Mbps |
