NEP100-A2 Multi-Channel Audio Transcoder
protocol, have multi-format files uploaded, convert the source audio formats and output IP streams over UDP/RTMP/HTTP/HLS/SRT protocol.. IP input over UDP/RTMP/RTSP/HTTP/HLS/SRT. IP SPTS output over UDP/RTMP/HTTP/HLS/SRT.
Key Specifications
- Input IP Stream Input
- Bitrate out MPEG 1 Layer 2: 32Kbps~384KbpsAC3, LC-***, HE-***, HE-***-V2: 48Kbps~640Kbps
- Protocolconversion SourceVideo
- Resolution 4K-50/25,1080p-60/50,1080i-60/50,720p-60/50,576i,480i
- IP out 4x GE port,RJ45,SPTSProtocol: UDP, RTMP (Client mode, push stream to server)RTMP, HTTP, HLS (Server mode, pull stream)SRT (just use caller mode and TS payload)
- Video file uploading TS, MP4, MKV, MOV, FLV
- Video Bypass Format
- Audio Transcoding Format
Overview

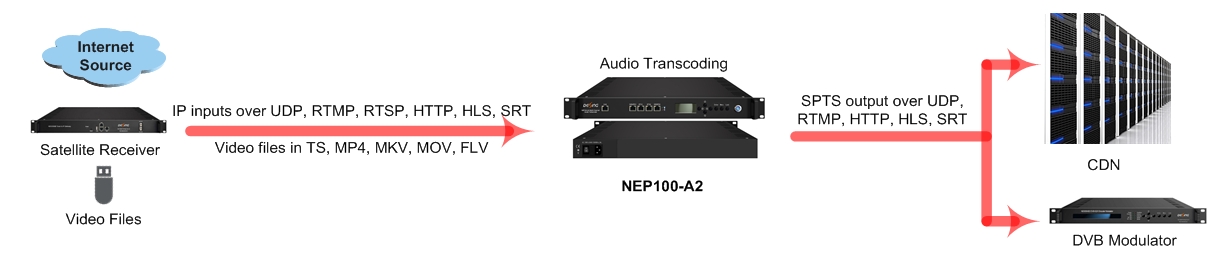

NEP100-A2 is a Multi-Channel Audio Transcoder. It can receive the IP streams over UDP/RTMP/RTSP/HTTP/HLS/SRT It is an ideal choice of audio transcoding application in TV programs. Key Features: Audio transcoding of max 40 TV programs (not audio program) under the specific condition; 4 GE bidirectional Ethernet ports, input or output settable; Video files uploading in TS/MP4/MKV/MOV/FLV format; IP input over UDP/RTMP/RTSP/HTTP/HLS/SRT; IP SPTS output over UDP/RTMP/HTTP/HLS/SRT; Web-base GUI and LCD/Key button for easy management Specifications: protocol, have multi-format files uploaded, convert the source audio formats and output IP streams over UDP/RTMP/HTTP/HLS/SRT protocol.; If a TV program has more than one audio, all audios will be transcoded under the same setting, such as audio format and audio bitrate.; Audio format conversion among; MPEG 1 Layer 2, AC3, LC-***, HE-***, HE-***-V2, video bypass; IP Stream Input; Protocol: UDP (MPTS/SPTS); RTMP, RTSP, HTTP, HLS, SRT (SPTS); Video file uploading; Protocol: UDP, RTMP (Client mode, push stream to server)
Full Specifications
| Input | IP Stream Input |
| Video file uploading | TS, MP4, MKV, MOV, FLV |
| Video Bypass | Format |
| Resolution | 4K-50/25,1080p-60/50,1080i-60/50,720p-60/50,576i,480i |
| Audio Transcoding | Format |
| Sampling rate | 44.1KHz, 48KHz |
| Bitrate out | MPEG 1 Layer 2: 32Kbps~384KbpsAC3, LC-***, HE-***, HE-***-V2: 48Kbps~640Kbps |
| IP out | 4x GE port,RJ45,SPTSProtocol: UDP, RTMP (Client mode, push stream to server)RTMP, HTTP, HLS (Server mode, pull stream)SRT (just use caller mode and TS payload) |
| System | Web-base GUI and LCD/Key button |
| General | Dimension |
| Temperature | 0~50℃(operation), -20~80℃(storage) |
| Power Supply | AC 100V-240V 50/60Hz, 2A |
| Protocolconversion | SourceVideo |
| UDP to UDP | H.264/5Mbps |
