NEP100-A/A3 IP Streamer
Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable. Video format: HEVC/H.265, MPEG-4 AVC/H.264. IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP(SPTS, Multicast) , RTP, RTSP, HLS and RTMP (Program…
Key Specifications
- IP output IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP(SPTS, Multicast) , RTP, RTSP, HLS and RTMP (Program source should be H.264 and AAC encoding)
- Input IP inputs thru ETH 1&2, GE ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
- System Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s)
- Protocol conversion Programs
- Power Supply AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
- General Demission (WxLxH)

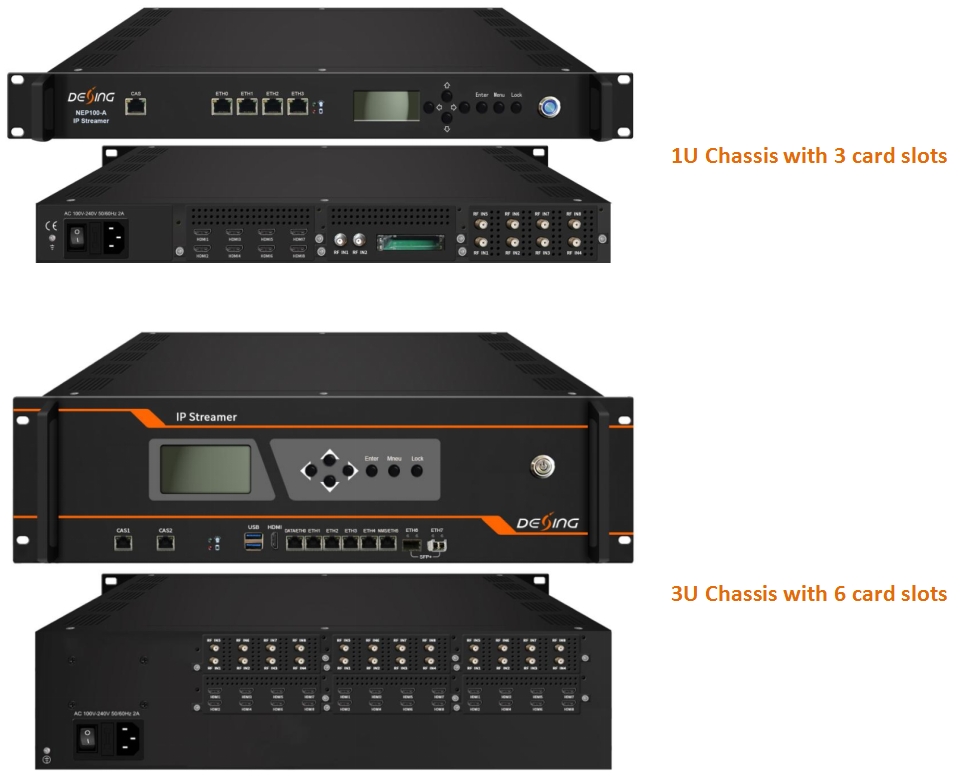

- NEP100-A 1U with 3 slots
- NEP100-A3 3U with 6 slots
Overview
NEP100-A is a flexibly modularized 1U (or 3U) device with the features of Encoder/Receiver, IP Gateway and IPTV Server for the protocol-conversion application and IPTV-system application. It supports max 3 (or 6) pluggable streamer cards embedded, such as encoder card and tuner card to receive the HDMI signals and tuner signals etc. It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP,UDP, RTP, RTSP, HLS protocol and TS files into the output IP streams over SRT, HTTP,UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with Dexin IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel, hospital and community. It is closely related with the program bitrate and protocol type etc for Max program numbers involved in protocol conversion, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) Key Features: Encoder/Receiver, IP Gateway and IPTV Server in one device; 2 separate Web GUI, one for Cards and Gateway, the other for IPTV Server
Full Specifications
| Input | IP inputs thru ETH 1&2, GE ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
| IP output | IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP(SPTS, Multicast) , RTP, RTSP, HLS and RTMP (Program source should be H.264 and AAC encoding) |
| System | Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s) |
| General | Demission (WxLxH) |
| Management | 2 separate Web GUI (one for Cards and Gateway, the other for IPTV Server) through ETH3 (3U model through ETH5) |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
| Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| Model No. | Size |
| NEP100-A | 1U with 3 slots |
| NEP100-A3 | 3U with 6 slots |
| Protocol conversion | Programs |
| Protocol conversion | Programs |
| UDP to HTTP | 150 |
| UDP to HLS | 150 |
| UDP to SRT | 130 |
| UDP to RTMP | 150 |
